SKU：HRT-DQ(2000/18000)-20S
CATEGORY：Directional Couplers
TAGS：2-18GHz, 20dB Directional Couplers
| Frequency Range | 2000-18000 MHz |
| Nominal Coupling | 20 dB |
| Nominal Coupling Loss | 0.04 dB |
| Coupling Flantess | ±1.0 |
| Directivity | 12dB min |
| Insertion Loss | 0.5dB max (Excluding Nominal Coupling Loss) |
| VSWR Primary | 1.50:1 max |
| VSWR Secondary | 1.60:1 max |
| Power Handling | 50 Watts(Forward Power) |
| Input and Output Connectors | SMA-Female (50 ohms) |
| Coupling Port Connector | SMA-Female (50 ohms) |
| Size | 43*15*11 mm |
| Suface Finish | Black Painted |
50 ohms 20dB SMA-Female Directional Coupler From 2GHz to 18GHz Rated at 50 Watts
The HRT-DQ(2000/18000)-20S is a 20dB directional coupler that operates from 2 to 18 GHz and can handle up to 50 Watts . This SMA directional coupler offers 12 dB directivity and 1.6:1 max VSWR. The package interface uses SMA on all of the ports.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.
Outline Drawing
All Diminsion in mm(inches)
Outline Tolerances ±0.3(0.012)

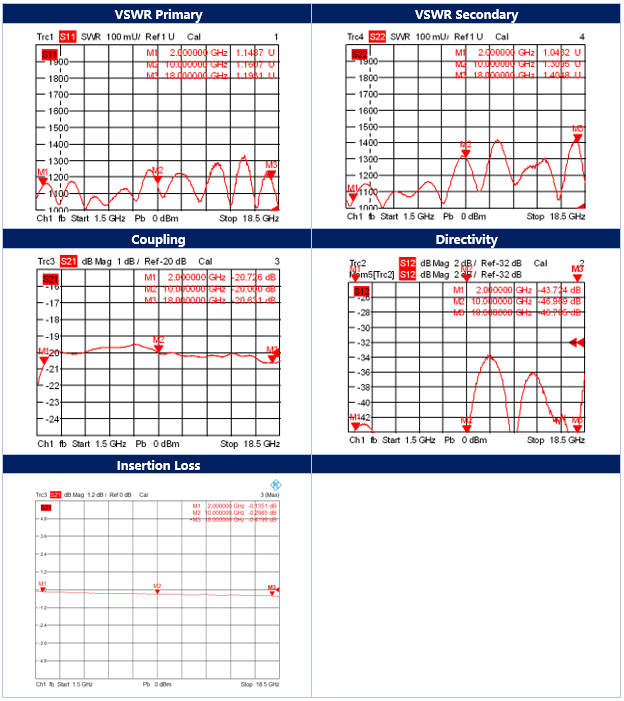

Test Plots
More details can be seen in data sheet.
