SKU：HRT-HC(6000/18000)-90S
CATEGORY：90deg Hybrid Coupler
TAGS：6-18GHz
| Frequency Range | 6000-18000 MHz |
| Nominal Coupling | 3.0 dB |
| Nominal Degree | 90 deg |
| Insertion Loss | 1.0dB max (Excluding Nominal Coupling Loss) |
| VSWR | 1.5:1 max |
| Isolation | 16dB min |
| Amp. Unbalance | ±0.6 dB max |
| Phase Unbalance | ±5 deg max |
| Power Handling | 30 Watts(Average Power) |
| Input and Output Connectors | SMA-Female (50 ohms) |
| Size | 25.4*12.7*10 mm |
| Suface Finish | Black Painted |
50 ohms 90deg Hybrid Coupler SMA-Female Connectors From 6GHz to 18GHz Rated at 30 Watts
The HRT-HC(6000/18000)-90S is a 90 degree hybrid coupler that operates from 6 to 18 GHz and can handle up to 30 Watts . This SMA hybrid coupler offers 16 dB Isolation and 1.5:1 max VSWR. The package interface uses SMA on all of the ports.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.

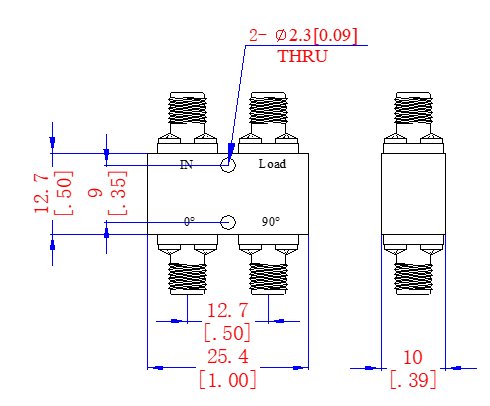

Outline Drawing
All Diminsion in mm(inches)
Outline Tolerances ±0.3(0.012)

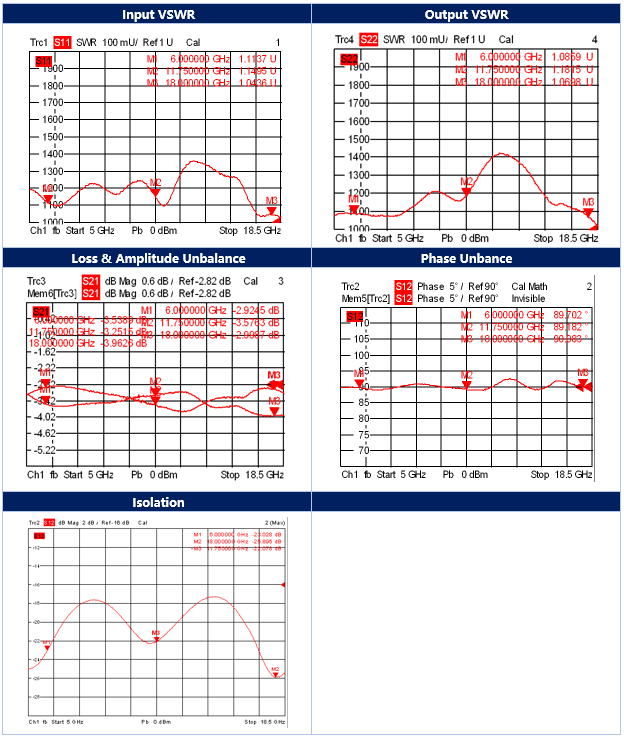

Test Plots
More details can be seen in data sheet.
