HRT-BF(9370/160)-Q7S

The HRT-BF(9370/160)-Q7S is a cavity band pass filter. The pass band is 9290-9450MHz.lt has excellent rejection ≥25dB@9240MHz and ≥24dB@9500MHz. It has a maximum insertion loss of 2.0dB. The HRT-BF(9370/160)-Q7S has SMA-Female connectors.
HRT-BF(9370/160)-Q7S
PDF DATASHEET
Qty:

SKU:HRT-BF(9370/160)-Q7S

CATEGORY:Bandpass Filters

TAGS:Cavity Filters

  • Specifications
  • Description
  • Contact Us
Center Frequency(CF)9370 MHz
Bandwidth160 MHz
Insertion Loss2.0 dB max
Pass Band FlatnessTBD
Return Loss14 dB min
Group Delay VariationTBD
Power Handling+30dBm cw max
Rejection≥25dB@9240MHz, ≥24dB@9500MHz
Input ConnectorsSMA-Female (50 ohms)
Output ConnectorsSMA-Female (50 ohms)
Size81.3*19.8*19.8 mm
Suface FinishBlack Painted

9290-9450MHz SMA-Female Coaxial Cavity Band Pass Filter Rated at +30dBm (CW)

The HRT-BF(9370/160)-Q7S is a cavity band pass filter. The pass band is 9290-9450MHz.lt has excellent rejection ≥25dB@9240MHz and ≥24dB@9500MHz. It has a maximum insertion loss of 2.0dB. The HRT-BF(9370/160)-Q7S has SMA-Female connectors.


Key Electrical Specifications

Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature

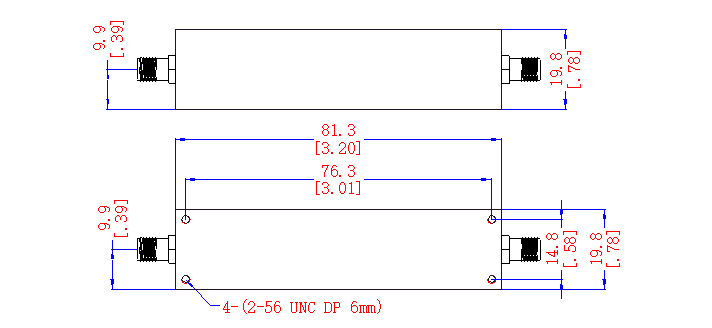

Outline Drawing

Test Plot


More details can be seen in data sheet.
