SKU：HRT-SF(2595/190)-1563S
CATEGORY：Filters
TAGS：Bandstop Filters
| Frequency Range | DC-2450 MHz and 2710-3000MHz |
| Insertion Loss | 2.0 dB max |
| Pass Band Flatness | TBD |
| VSWR | 1.8:1 max |
| Group Delay Variation | TBD |
| Power Handling | 20W cw max |
| Rejection | ≥30dB@2500-2690MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 120mm*49mm*42mm |
| Suface Finish | Black Painted |
2500-2690MHz SMA-Female Cavity Bandstop Filter Rated at 20 Watts (CW)
The HRT-SF(2595/190)-1563S is a cavity bandstop filter. The pass band is DC-2450 MHz and 2710-3000MHz.lt has excellent rejection ≥30dB@2500-2690MHz . It has a maximum insertion loss of 2.0 dB. The HRT-SF(2595/190)-1563S has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : DC-2450 MHz and 2710-3000MHz
Insertion Loss : 2.0 dB
VSWR : 1.8:1
Rejection : ≥30dB@2500-2690MHz
Power : 20 W cw
Operating Temp. : 0℃ to +40℃
Dimension L*W*H ： 120mm*49mm*42mm
Finishing : Black White

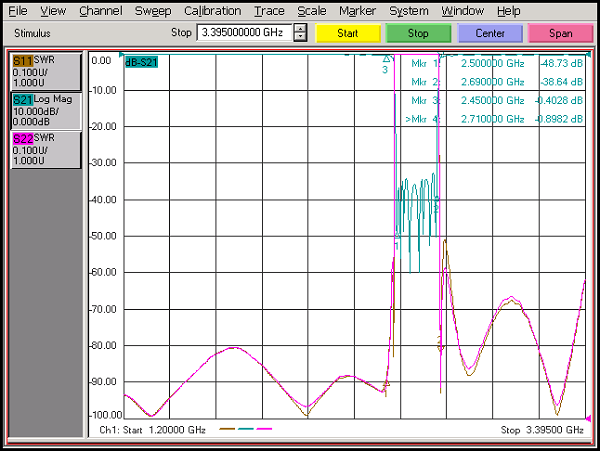

Test Plot:
More details can be seen in data sheet.
